Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135

Name: Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135
SKU: AY-FRN30-0014_2
Price: 81.75 USD
Availability: InStock

Steering Kit Fits John Deere Tractor LA100 LA105 LA110 LA120 LA125 LA130 LA135

$81.75 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

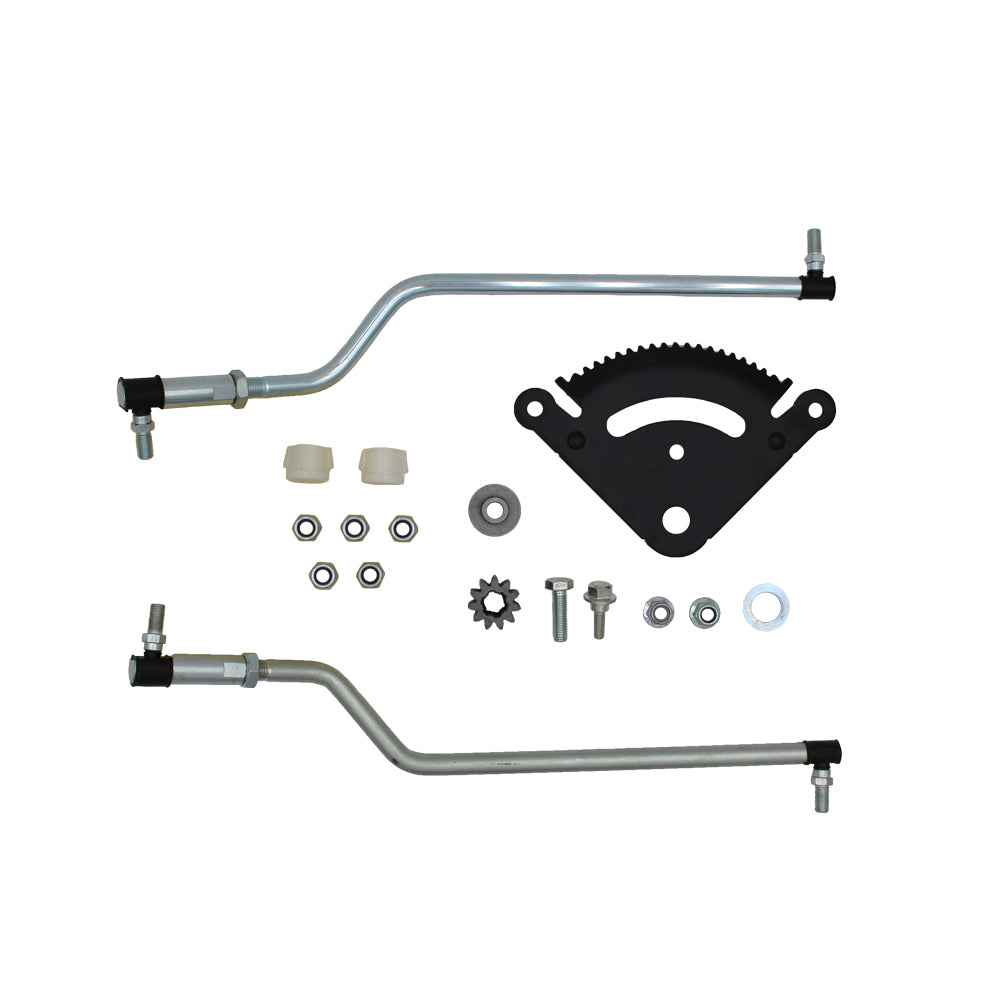

One New Aftermarket Replacement Steering Sector with Drag Link Kit

Fits John Deere Lawn Tractor Models:
LA100, LA105, LA110, LA120, LA125, LA130, LA135

Kit Includes:
(1)- Steering Sector gear
(1)- RH Drag Link
(1)- LH Drag Link
(1)- Pinion Gear
(1)- Steering Gear Hardware
(2)- Steering Shaft Bushings
(4)- Lock Nuts, (10mm x 1.25mm Pitch)

Replaces Part Numbers:
GX25785, GY20771, GY21251, 13340, GY20770, GY21250, GX20053, GX20053, 14M7396, M153513, 20225, GX21994, GX21994, 14M7455.

Models This Part Fits:

102, 102 105 115 125 135 145 155C 190C, 105, 107H, 107S, 115, 125, 135, 145, 155C, 190C, 190C., 92H, D100, D105, D110, D120, D125, D130, D130102, D140, D150, D155, D160, D170, S240

Additional Information:

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (5) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513

Reference Numbers:

13340, 14M7396, 20225, FRN30-0173-STEERINGKIT, GX20052BLE-A1, GX20052BLE-A1-A, GX20053, GX20053-A1, GX20053-A1-A, GX20053JD, GX21994-A1, GX21994-A1-A, GX25785, GY20439-A1-A, GY20440-A1, GY20440-A1-A, GY20491-A1, GY20770, GY20771, GY21251, M153513, VIC359697984, VIC359697984-A
