GX10168 Mower Deck Rebuild Kit w/ Deck Wheels Fits John Deere

$179.99 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

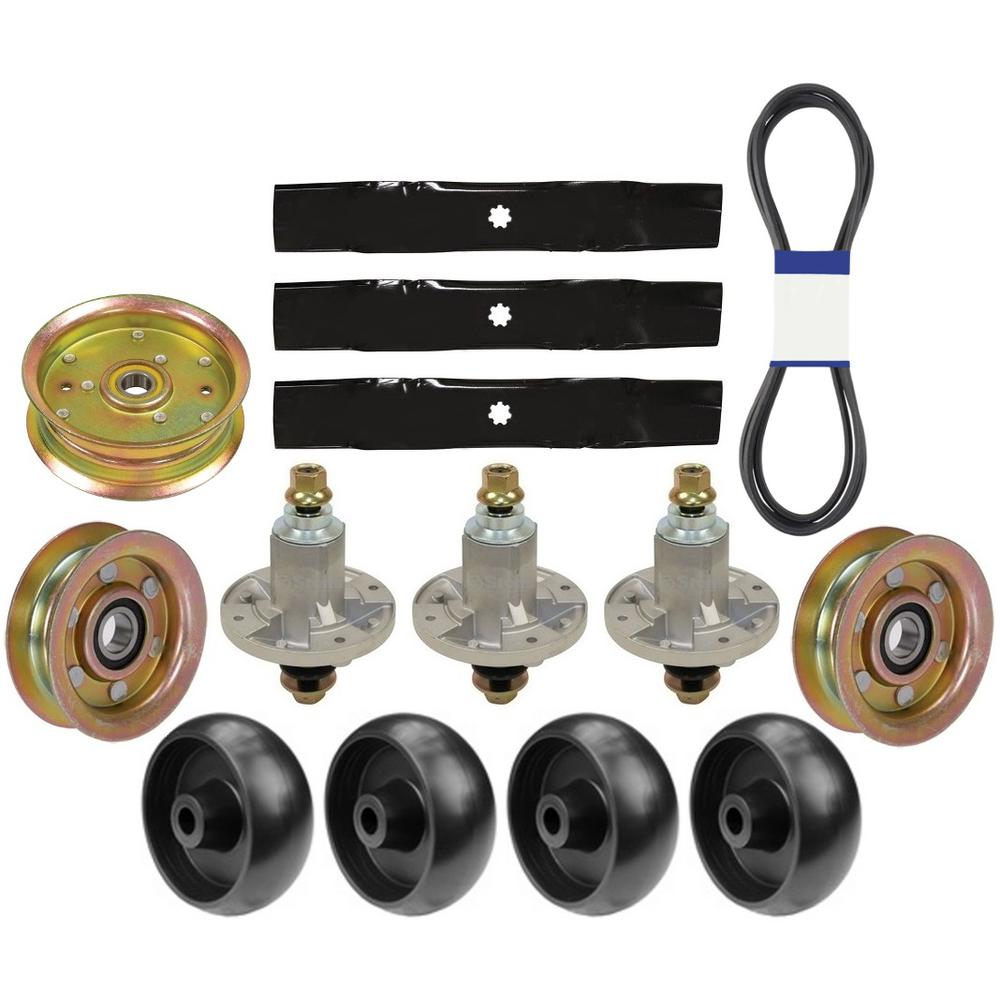

Aftermarket Mower Deck Rebuild Kit w/ Deck Wheels

Tech Info:
-Kit Contains:

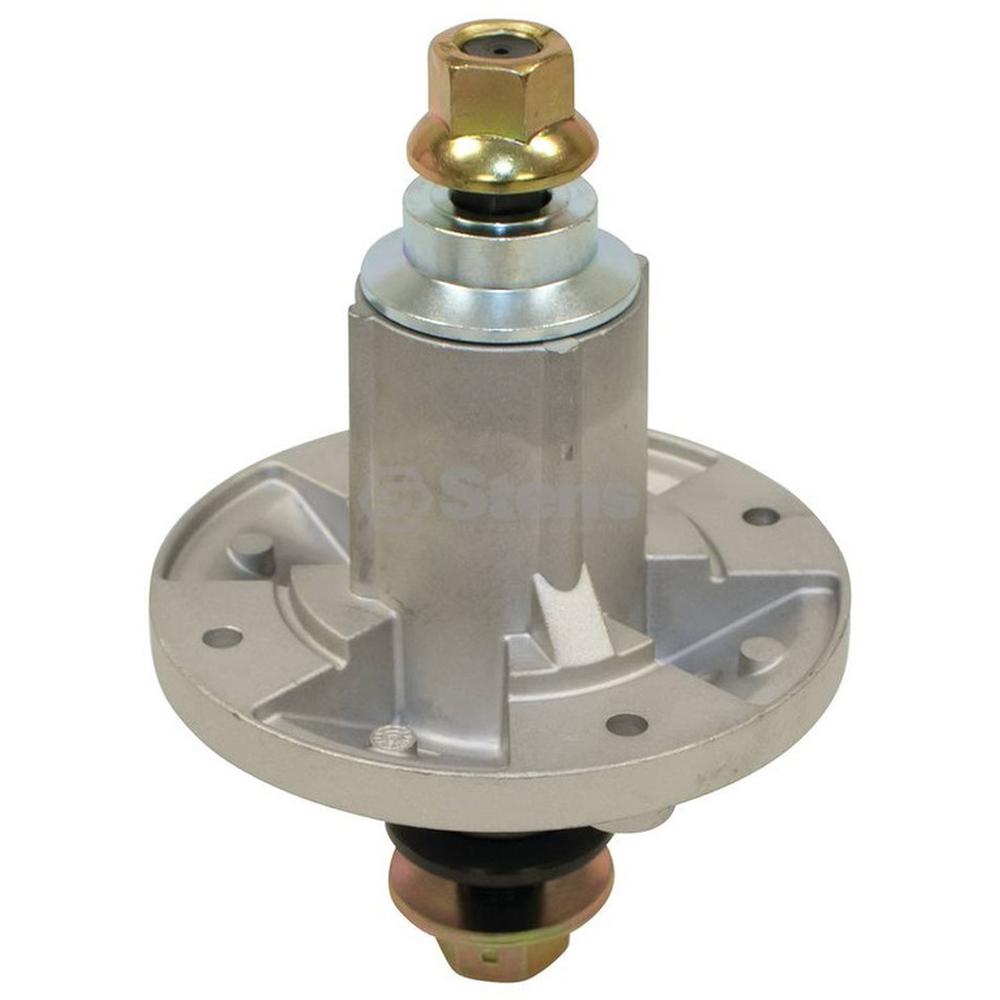

-(3) Spindle Assembly with Nut
-Includes grease zerk
-7 lobe center hole.
-Outside Diameter 5"
-Height 7"
-Replaces 7 pt. star spindle shaft
-Replaces Part Number(s): GX21694, GY20867, GY20893, GY20962, GY21098
-

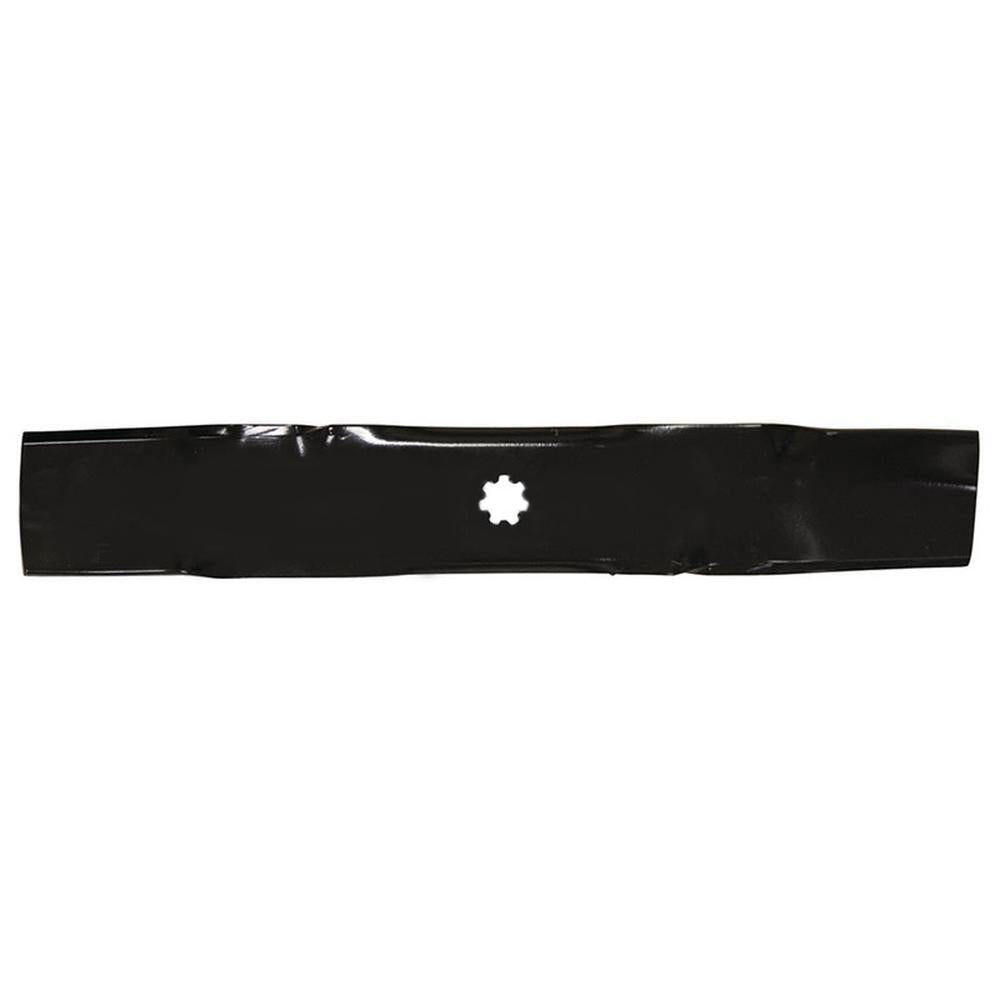

-(3) 48" Mower Blade
-Center Hole: 7 lobe
-Length: 17"
-Width: 2-3/4"
-Thickness: 0.1600"
-Replaces Part Number(s): AM137757, AM141035, GX21784, GY20852
-

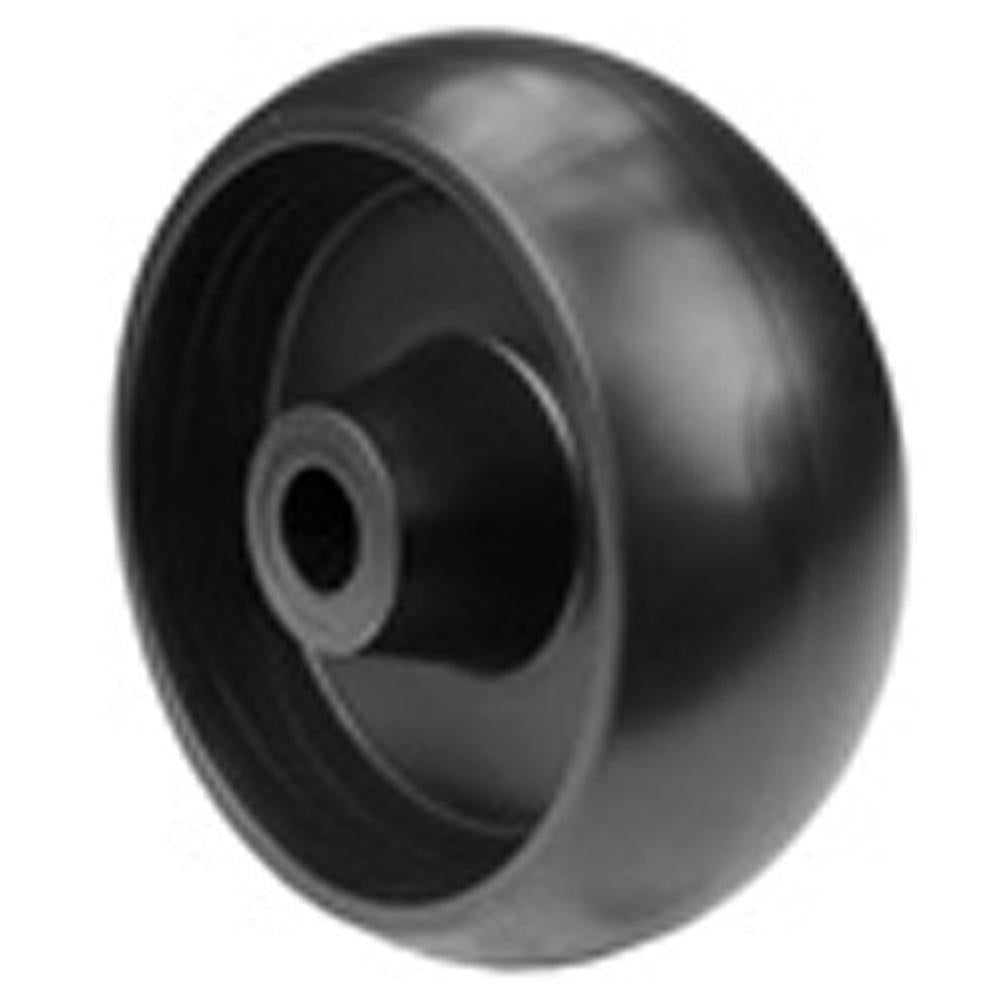

-(4) Deck Wheel
-Center Hole (Bore): 5/8"
-Hub: 1-3/4" Offset
-Tread: Smooth
-Bearing Type: None
-Wheel Size: 5" x 2" (1.785" Wide)
-Material: Plastic
-Wheel Color: Black
-Replaces Part Number(s):
-GX10168
-

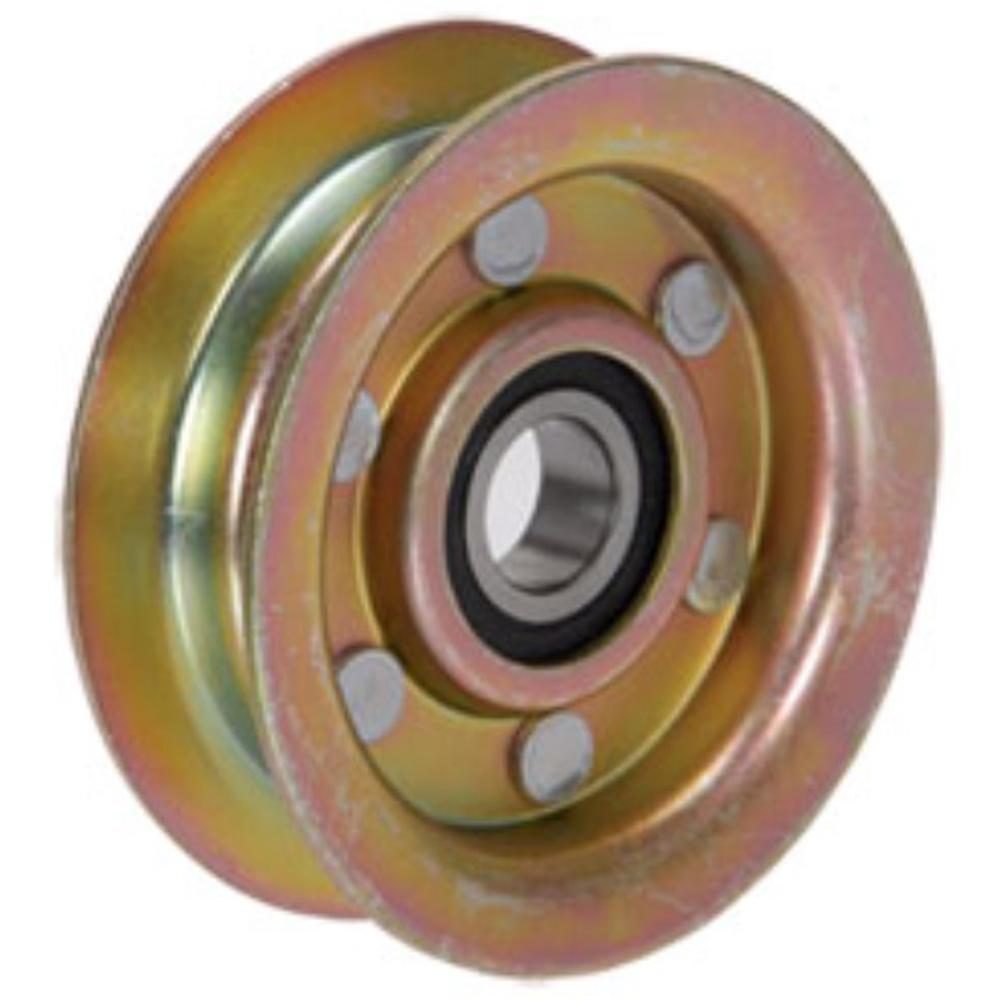

-(2) Flat Idler Pulley
-OD: 3-5/8",
-ID: 11/16",
-Height: 1-3/16"
-Replaces Part Number(s):
-GY20067, GY22172
-

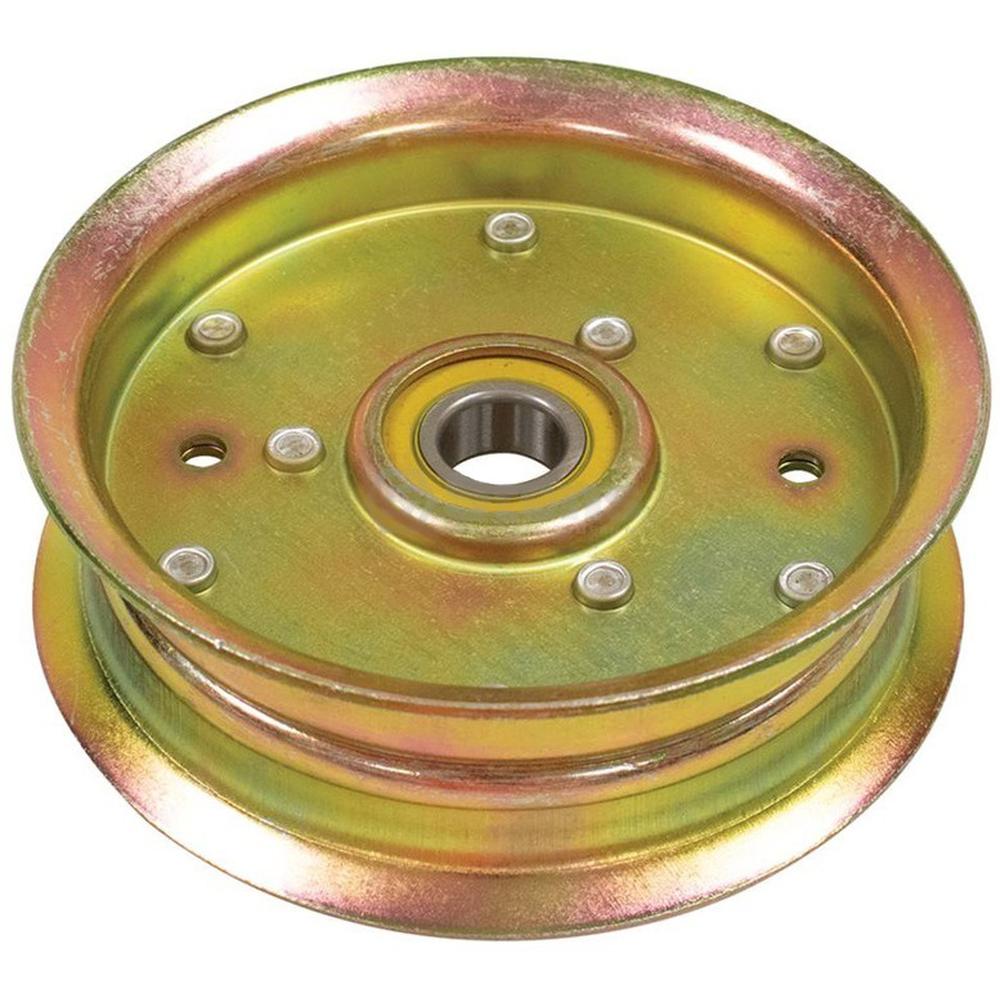

-(1) Steel Flat Idler Pulley w/ Flanges
-5-1/4" OD Including Flanges
-11/16" ID
-1-3/4" Height.
-Measurements taken from in stock part
-Replaces Part Number(s):
-AUC17621, GY20110, GY20629, GY22082
-

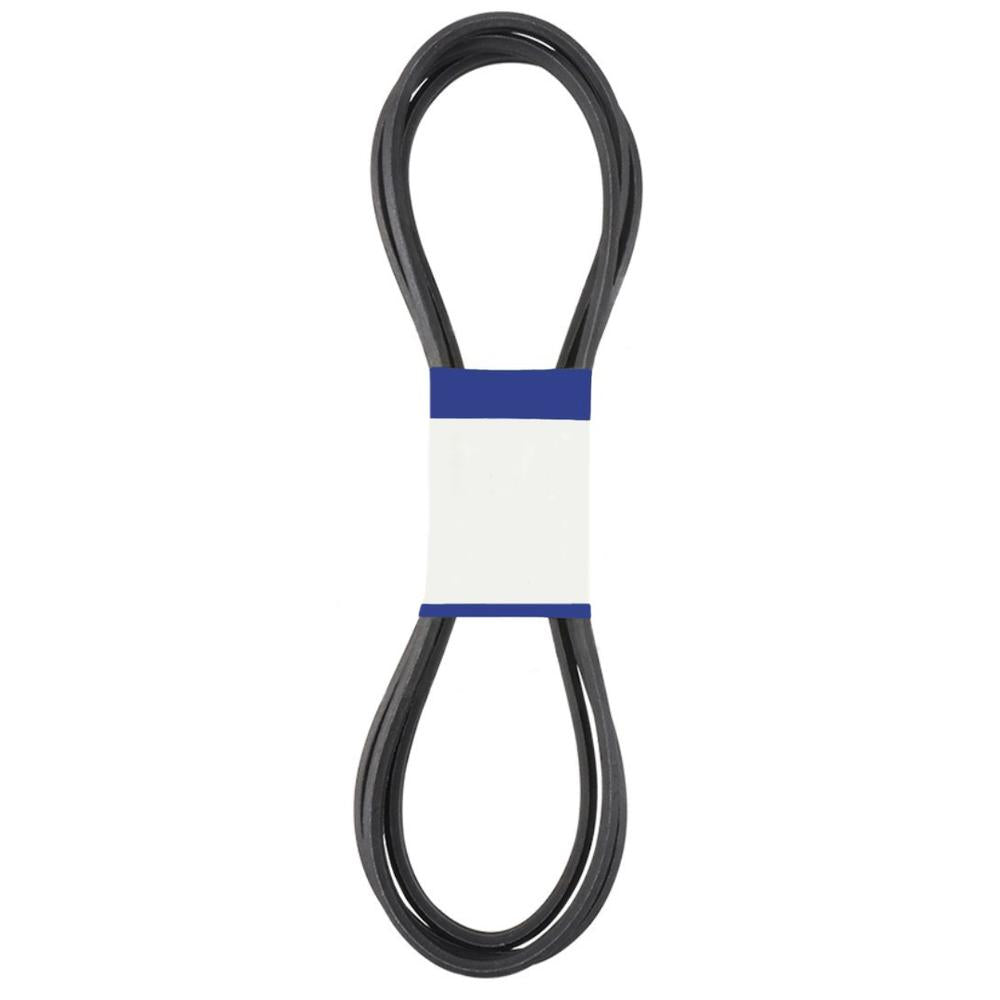

-(1) Belt
-1/2" x 141-1/8"
-Made With Aramid Cord
-Replaces Part Number(s): GX20571, GX21833

Fits John Deere:
Riding Mower Models: 48" Cut Lawn Mower
Replaces Part Number(s): GY20454, GX21784, GX10168, GY20067, GY20629, GX20571, GX21833, GX21694, GY20867, GY20893, GY20962, GY21098, GX10168, GX10168JD, GY20067, GY22172, GY20629, GY22082

Models This Part Fits:

48" Cut Lawn Mower

Additional Information:

Kit Contains: (3) Spindle Assembly with Nut Includes grease zerk 7 lobe center hole. Outside Diameter 5" Height 7" Replaces 7 pt. star spindle shaft Replaces Part Number(s): GX21694, GY20867, GY20893, GY20962, GY21098 (3) 48" Mower Blade Center Hole: 7 lobe Length: 17" Width: 2-3/4" Thickness: 0.1600" Replaces Part Number(s): AM137757, AM141035, GX21784, GY20852 (4) Deck Wheel Center Hole (Bore): 5/8" Hub: 1-3/4" Offset Tread: Smooth Bearing Type: None Wheel Size: 5" x 2" (1.785" Wide) Material: Plastic Wheel Color: Black Replaces Part Number(s): GX10168 (2) Flat Idler Pulley OD: 3-5/8", ID: 11/16", Height: 1-3/16" Replaces Part Number(s): GY20067, GY22172 (1) Steel Flat Idler Pulley w/ Flanges 5-1/4" OD Including Flanges 11/16" ID 1-3/4" Height. Measurements taken from in stock part Replaces Part Number(s): AUC17621, GY20110, GY20629, GY22082 (1) Belt 1/2" x 141-1/8" Made With Aramid Cord Replaces Part Number(s): GX20571, GX21833

Reference Numbers:

210-051, 265-238, 280-085, 280-242, 285-851, 330-445, AM137757, AM141035, GX10168, GX20571, GX21784, GY20067, GY20110, GY20454, GY20629, GY20629-A, GY20852, GY20867, GY20962, GY21098, GY22082, GY22172, GY22172-A
